LightTube – Tubular Daylighting System for Factories & Industrial Sheds
Tubular Daylighting System - a compact, highly reflective daylight delivery solution that brings natural light into interiors with minimal heat gain.
Overview
LightTube delivers natural daylight deep into industrial and manufacturing facilities, reducing dependence on artificial lighting and helping lower daytime electricity consumption.
Its UV-stable rooftop dome captures sunlight and channels it through a highly reflective tube before distributing bright, uniform daylight through the diffuser. Designed for manufacturing plants, warehouses, PEB buildings, industrial sheds, workshops, production areas, and storage facilities, LightTube provides an energy-efficient daylighting solution for large industrial spaces.
By maximizing the use of available natural light, LightTube helps reduce lighting energy consumption, lower operating costs, and improve visual comfort and working conditions—while making industrial facilities more sustainable and daylight-responsive.
Why choose LightTube?
- High-efficiency light transfer
- Low maintenance and weather resistant
- Minimal thermal transfer into the building
LightTube High-Performance Daylighting Unit
Technical Specifications
Download SpecificationsHow it works?
Light Collector
Highly durable and non-flammable polymeric material, UV resistant. Collects daylight from all angles and transfers light efficiently throughout the year.
Reflective System
Corrosion-resistant high reflectance coating transfers above 90% of light without colour shift, increasing output even at low angles.
Light Diffuser
Disperses light uniformly without bright spots, glare, or colour shift.

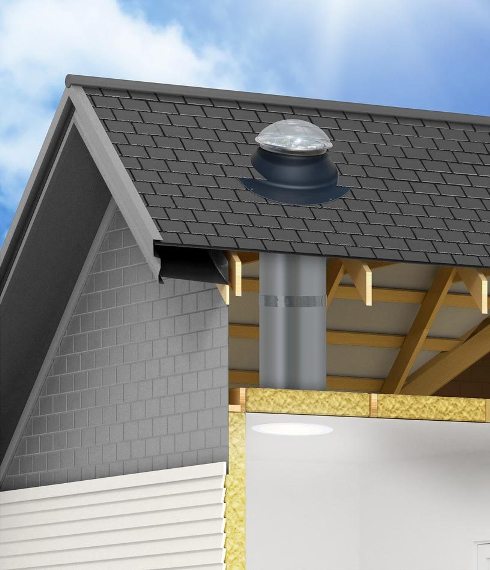

LT-520 Technical Cross Section & Working Principle
Performance and Dimensions
Designed to deliver cool, natural daylight into interior spaces with minimal heat and glare.
| Model | Diameter | Coverage |
|---|---|---|
| LT-750 | 750 mm | 900-1000 sqft |
| LT-520 | 520 mm | 450-500 sqft |
| LT-380 | 380 mm | ~100 sqft |
Features
- Bright, even natural daylight indoors
- Operates on cloudy and rainy days
- Negligible heat transfer
- Low maintenance and long service life
Applications
Industrial Sheds & Factories
Delivers bright, uniform daylight across manufacturing plants, PEB sheds, and assembly floors, drastically cutting daytime electric lighting costs.

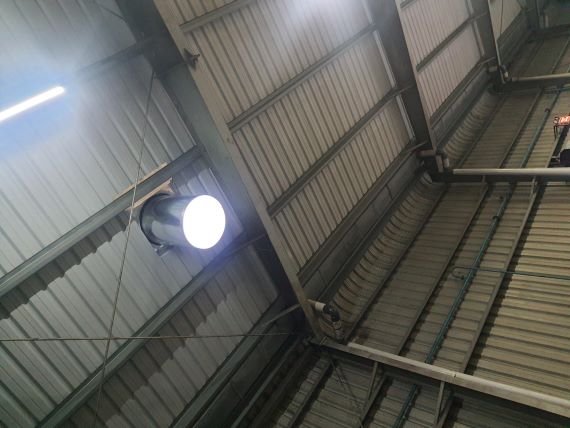

Factory Floor Daylighting with LT-520
Warehouses & Workshops
Provides deep, shadow-free illumination between high racks and work bays, ensuring optimal visibility and enhanced safety.

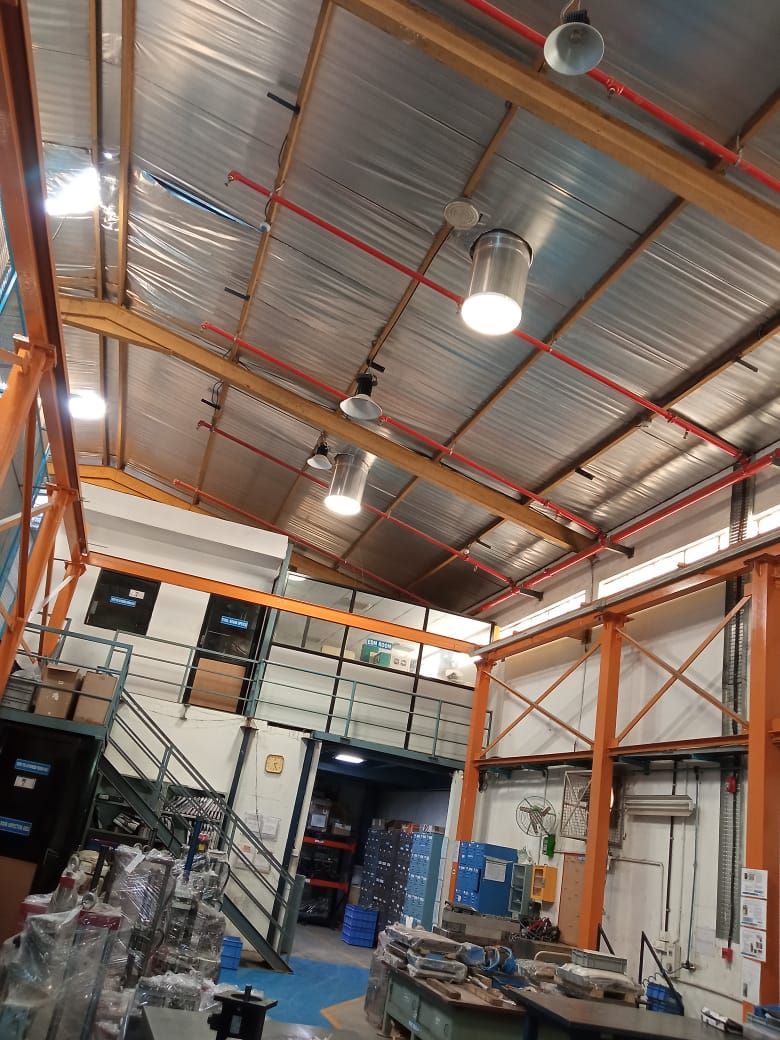

High-Bay Daylight Distribution
Commercial & False Ceilings
Seamlessly integrates into suspended grid ceilings in corporate offices, corridors, clean rooms, and institutional facilities.

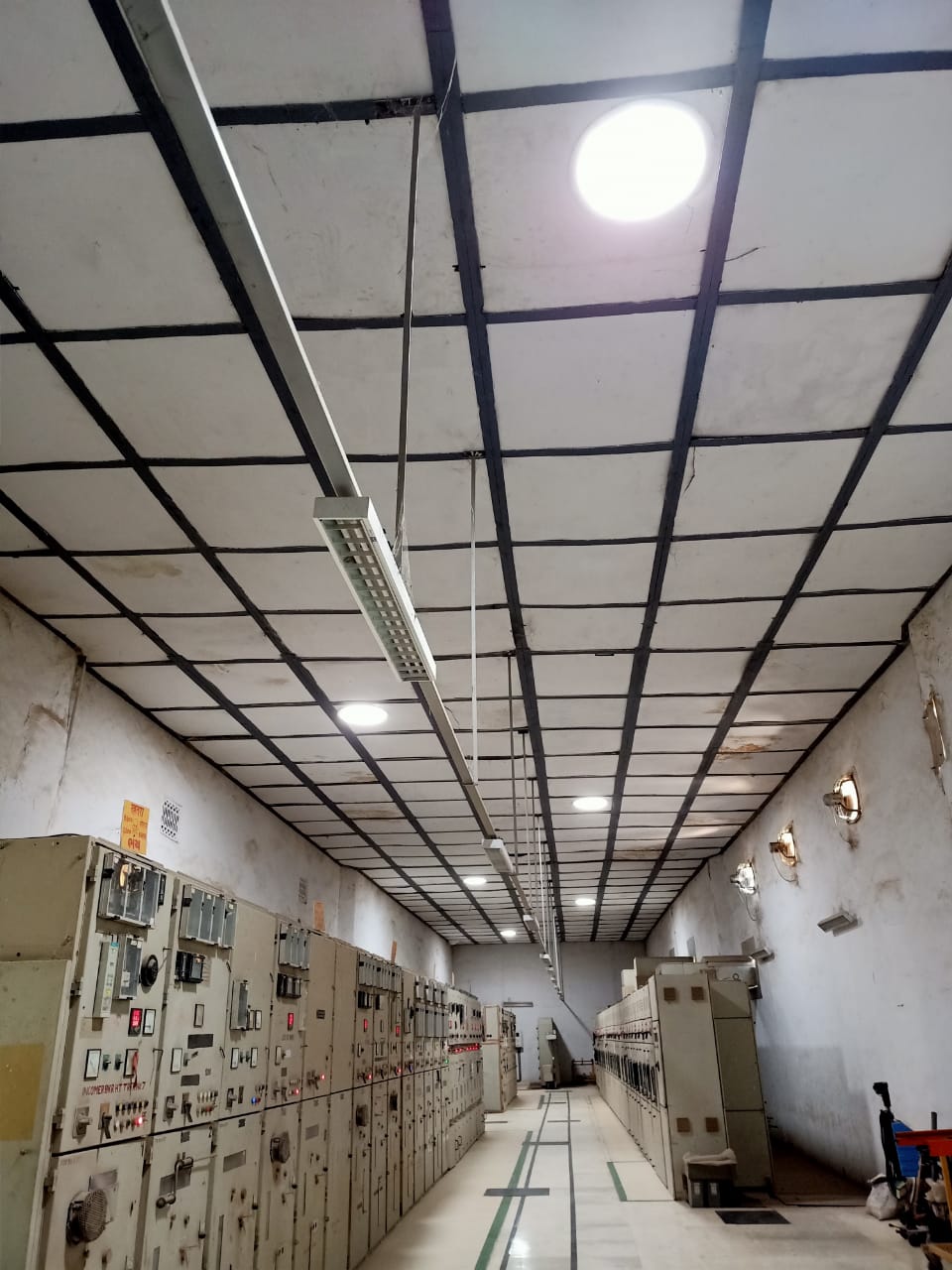

Flush False Ceiling Integration
Installation Notes
LightTube is engineered for swift, leak-proof integration with metal trapezoidal sheets, standing seam roofs, and RCC flat slabs.
- Roof Profile Matching: Inspect roof profile and install custom factory flashing engineered to match the roofing contours.
- Dome Positioning: Position the collector dome to maximize unobstructed sun path and avoid rooftop obstructions.
- Reflective Tube Routing: Maintain straight tube runs with minimal bends to ensure maximum 90%+ light transfer.
- Weatherproof Sealing: Fasten with EPDM gaskets and industrial-grade sealants to ensure 100% water tightness.
- Diffuser Fitting: Mount the optical diffuser flush at ceiling level for smooth, uniform illumination.

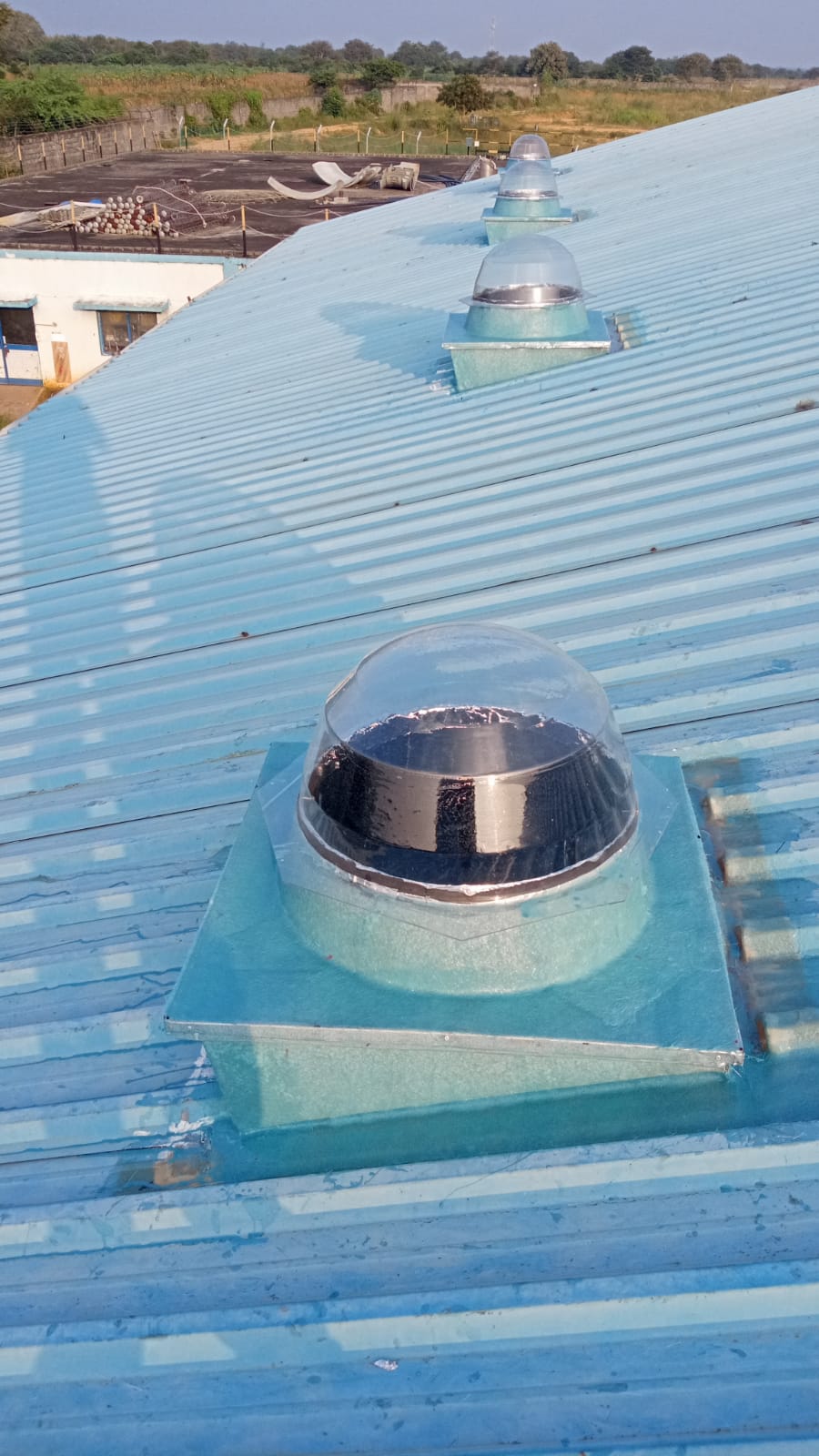

LT-520 Exterior Rooftop View & Flashing Installation
Benefits vs. Electrical Lighting
- Reduces AC load
- Saves electricity and operational cost
- Improves occupant comfort and productivity
- Reduces daytime artificial lighting usage
