Reflectra

Natural Daylighting Solutions for Industrial Buildings – capturing and redirecting sunlight to illuminate deep interiors without electricity.

Reflectra Passive-X External

A standalone Passive Solar Reflector designed to capture and redirect natural sunlight into warehouses, factories and industrial sheds — without electricity.

The Challenge

Industrial sheds often suffer from poor internal lighting, forcing reliance on artificial lights even during bright daytime. This increases electricity cost and operational dependency.

The Solution

Reflectra Passive-X captures intense outdoor sunlight and redirects it deep inside through entrances or openings, instantly brightening interior workspaces.

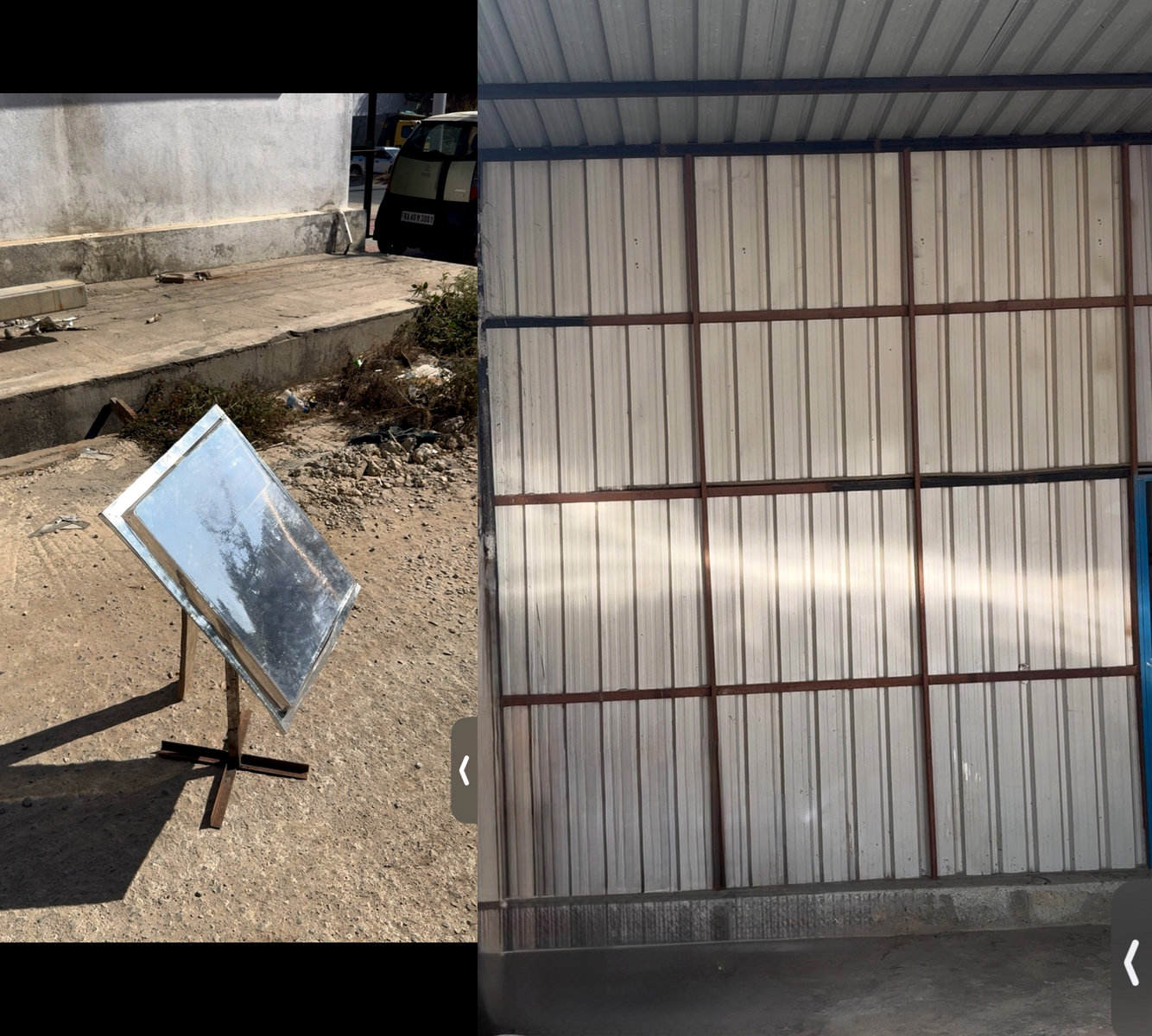

Passive solar reflector external installation

Reflectra Passive-X External System

Passive-X Features

FeatureDescription
High-Reflectivity PanelFlat-panel mirror maximizes sunlight capture, even in dusty environments.
Rugged Outdoor StandHeavy-duty metal cross-base structure built to withstand wind and uneven terrain.
Adjustable AngleManual tilt mechanism allows optimal tracking of the sun path.
Zero MaintenanceNo wiring, no batteries, no solar cells. Pure passive reflection system.

On-site demonstration at our premises, Bangalore.

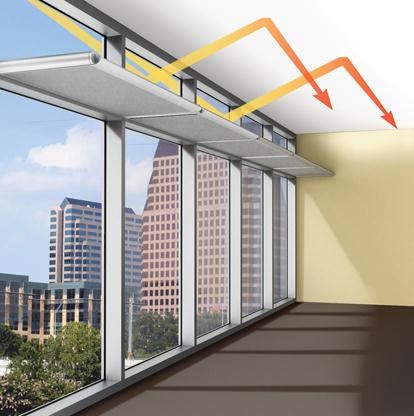

Day glazing internal reflector system

Reflectra Passive-IN Internal System

Reflectra Passive-IN Internal

Advanced Day Glazing System engineered to redirect daylight onto the ceiling for deep, uniform illumination across industrial interiors.

How it works?

  1. Sunlight enters through clerestory or upper glazing.
  2. Reflectra panel redirects light upward.
  3. Light strikes white ceiling surface.
  4. Ceiling diffuses light evenly across the workspace.
  5. Result: Deep illumination with minimal glare and heat gain.

Advantages

Uniform Lighting

Ensures even daylight distribution unlike spotty skylights.

Energy Savings

Reduces electricity consumption by 40–60%.

Heat Control

Low heat gain compared to traditional skylights.

Glare-Free

Indirect lighting prevents glare on screens and machinery.

Large Span

Compatible with PEB layout and large-span structures.

Productivity

Natural light boosts occupant mood and productivity.

Applications

Industrial
  • Manufacturing Units
  • Storage Warehouses
Commercial
  • Offices
  • Workshops & Garages
Specialized
  • Remote Locations
  • Glass facade buildings

Technical Specifications

  • High-transmission daylight glazing
  • Anodized high-reflective aluminum finish
  • Optimized sun path angles (Indian climate)
  • Wall-mounted below roof or clerestory zone
  • Retrofit + New Construction compatible

Energy Saving Impact

Industrial lighting consumes 25–40% of total factory electricity. Reflectra Passive-IN significantly reduces daytime lighting load, lowers peak demand, and improves ESG compliance.

Typical ROI: 18–30 months depending on usage.
